SAM4'S SPS-500 Series

SAM4's SPS-500 SeriesSam4s SPS-500 Series

Hybrid ECRs for Retail & Food Service Establishments

Featuring a hybrid design, SAM4s has combined fast and simple ECR keyboard entry with an intuitive touch screen operator display. The SPS-500 is easily configured for your food, beverage, or retail business and provides the functions and options you need to meet your point of service needs.

View Brochure

Reliable ECR Platform – Exceptional POS Capability

Using robust integrated software, your authorized SAM4s dealer can design your custom application by choosing from an array of features available for food and retail operators. The SPS-500 is an ideal replacement for older-technology ECRs, a cost-effective alternative to PC-based POS systems, and a powerful platform for independent franchises, multi-unit operators and chain accounts.

  • Casual Dining
  • Family Style Restaurants
  • Bar/Restaurants
  • Quick Service Restaurants
  • Sandwich
  • Bakery
  • Pizza
  • Coffee
  • Taco
  • Hamburger
  • Ice Cream and Yogurt
  • Deli’s
  • Specialty Foods
  • Specialty Gourmet
  • Liquor Stores
  • Beer/Wine
  • Gift Shops

Choose a Flat or Raised-Key Keyboard

The flat-keyboard configuration can easily accommodate over 100 one touch preset keys, significantly more than any touch screen POS terminal. Your cashier can locate and register items quickly, keeping your lines moving. The raised keyboard provides all the functions required by busy retailers.

SPS-520 FT

SPS-520 FT

Flat Spill-Resistant Keyboard
Receipt and Journal Printers

SPS-520 RT

SPS-520 RT

Raised-Key Keyboard
Receipt and Journal Printers

SPS-530 FT

SPS-530 FT

Flat Spill-Resistant Keyboard
3" Receipt Printer

SPS-530 RT

SPS-530 RT

Raised-Key Keyboard
3" Receipt Printer

Lock & Key Security

Authority is managed using traditional, secure cash register keys.

Display Up to 200 Operator Screens with 24-Items per Screen

The color touch screen can be configured to guide the operator through choices of flavors, toppings, condiments, and instructions. If you sell a combo meal, a screen or series of screens can display to reflect the combo choices. If the item requires condiments or instructions, the screen can lead your operator through options and additional choices.

7" Color Touch Screen Improves Order Entry Accuracy

Unlike an ECR that may display only the last item entered, the SPS-500 displays the entire order, allowing your operator to confirm the order and then refer to the display as they fill it.

Thermal Printers

Thermal Printer(s)

Reliable high-speed thermal receipt printer(s) featuring quick and easy drop-in paper loading.

Color Touch Screen

Color Touch Screen

The adjustable 7" color touch screen features up to 24 key positions per screen.

Standard Cash Drawer

Standard Cash Drawer

Features an extra-deep adjustable 5 bill, 8 coin insert, two media slots and a standard security lock & key.

Rear Display

Rear Display

The rear display allows consumers to monitor prices as items are entered and view the sale total.

On Screen Manager and Program Access

Access manager and programming functions intuitively through menus and on-screen options. Programming and editing can be done without referring to manuals. Managers can easily view report data and quickly adjust to changing conditions.

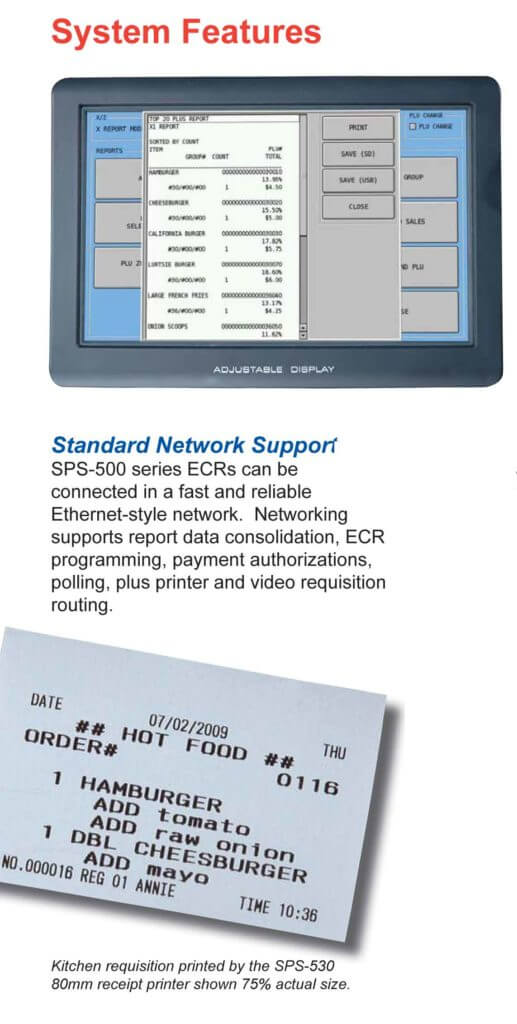

SAM4's SPS-500 Series System Features

Flexible, Built-In Printers

A cost-effective design allows the built-in printer to generate both receipts and requisitions – the 3" printer (SPS-530) delivers an extremely high-quality requisition. If multiple ECRs are connected in the same network, print jobs can be directed to the printer in another ECR, effectively allowing one ECR to double as a system kitchen printer. In the same manner, receipts or journal data can be routed as demanded by the application.

System Reports

A menu driven selection of reports can be viewed on the ECR screen, printed at a local printer, polled remotely, sent electronically via FTP or saved to SD/USB memory. Sales information can be simultaneously collected on up to five different periods: for daily, weekly, monthly, quarterly or yearly record keeping.

Time and Attendance

A basic time and attendance system provides payroll ready data for your in-house payroll system or payroll service. You get critical labor reporting, including sales/labor percentage and sales per man-hour. Information is easily accessible by store managers for real time staff management.

Remote Polling

Poll by dial-up or Ethernet connection. Companion software for your PC, SAM500, supports your application by first polling sales information from individual ECRs, ECR networks or multiple remote locations. In your office SAM500 provides item file management and inventory functions. You can easily add or delete menu items and send new menu screens to your restaurants for daily, weekly or seasonal promotions.

Insure Speed, Security and Efficiency with Integrated Credit, Debit and Gift Card Payments

Electronic payment sales can be processed in a single step at the SAM4s SPS-500 with an optional DataTran™ integrated payment appliance.

  • The SPS-500 is electronic payment and gift card processing ready – no additional software modules are required.
  • Free gift card processing is available through selected processing partners.
  • Transactions can be processed in two seconds or less using the latest IPTranTM or TwinTranTM technology and a persistent internet connection.
  • One Tran appliance can be used to process payments for a network of SPS-500 series ECRs.

Features

* With Optional Expanded Memory

  • Memory Allocation System:
    • Up to 60,000 PLUs*
    • Up to 999 Clerks*
    • Up to 99 Groups*
    • Up to 9,999 PLU Status Groups*
    • Up to 200 Key Link Menu Screens*
    • Up to 32 Registers per Network*
    • Up to 4 Hard/Soft Check Files*
  • 20 Character Programmable PLU Descriptors
  • 6-Line Preamble Receipt Message
  • 6-Line Postamble Receipt Message
  • Graphic Logo Printing on Receipt
  • Stock Management
  • Ingredient File
  • Condiment Items
  • 20 Price Levels (5 per PLU)
  • Manager Control
  • Link PLU
  • Receipt On Demand
  • Training Mode
  • 6 Taxes by Tables, % or VAT
  • 10 Discounts/Surcharges
  • Cash/Check/Misc 1-16 Tendering
  • 5 Currency Conversion Rates
  • 0-3 Decimal Point (Selectable)
  • Add Check
  • Delivery Tracking
  • Post Tendering
  • Cash Declaration
  • Check Tracking by Alpha
  • Paid Check Recall
  • Electronic Journal
  • Over 60 Reports
  • Not Found PLU

All product features are subject to change without notice.

Specifications

Printer TypeDirect Thermal, Drop-and-Print
Printer StationsSPS-530: Receipt/Requisition 80mm Printer
SPS-520: Receipt and Journal 58mm Printers
Printer SpeedSPS-530: 100mm per Second
SPS-520: 80mm per Second
DisplaysOperator: 7" TFT-LCD Touch Screen
Customer: Pop-up Turret, 2 Lines by 16 Characters
Keyboard CapacityFlat: 160 Programmable Locations
Raised: 90 Programmable Locations
Serial PortsFour Powered (5V Out)
COM1 & COM2 (D-Sub-9M)
COM3 & COM4 (RJ45)
USB PortsTwo v2.0 (1 Front / 1 Rear)
Cash Drawer PortsTwo Additional RJ11 (24V) Ports (Supports Open/Close)
LAN Port10/100 Base-T Ethernet (TCP/IP)
Card ReaderOptional Integrated Dual Track MCR
Compact FlashOptional 6MB Compact Flash Memory Expansion
Standard Cash Drawer5 Bill, 8 Coin with Drawer Lock & 2 Media Slots
DimensionsECR: 14 3/4" W x 16 3/4" D x 9 3/4" H (including Turret)
Cash Drawer: 15 3/4" W x 17 3/4" D x 4 3/8" H
Shipping Weight33 lbs (14.97 kg)
Power Requirements120 AC ± 10%, 60 Hz
Power ConsumptionApprox. 25 Watts
Operating Temperature32° ~ 104°F (0° ~ 40°C)
Humidity Range30% to 80% RH (Non-Condensing)
